CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm

1
MOQ
$729.45-765.25
Precio
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Fuente de alimentación: 110~120 VCA 220~230 VCA 50 Hz/60 Hz
Fuerza: 126w
Peso: 28 kilos
Tamaño: 290 mm (largo) x 220 mm (ancho) x 340 mm (alto)
Temperatura de trabajo: 10°C°~40°C°
Velocidad de rotación: 0-150 rpm
Tipo de conector: SC/FC/ST/LC/E2000/SMA905/MU
Tamaño de la máquina: Largo 240 mm × Ancho 240 mm × Alto 260 mm
humedad relativa: el 15%~85%
Placa de rotación OD: 127 milímetros (5 pulgadas)
Configuración de tiempo: 99 min 99 sec (máximo)
Velocidad de la placa de rotación: 140 rpm
Altura del salto de la placa: < 10="" um="">
Nivel de ruido: Libración de 50 dB
Pérdida de inserción: ≤0,20 dB (típico)
Resaltar:

48 pcs MU/LC capacity Fiber Optic Polishing Machine

,

98% first pass yield Optical Fiber Polisher

,

Adjustable speed 140rpm Fiber Connector Polisher
Información básica
Lugar de origen: Cantón, China
Nombre de la marca: chuanglixun
Certificación: RoHS
Número de modelo: CLX-02E
Pago y Envío Términos
Descripción de producto

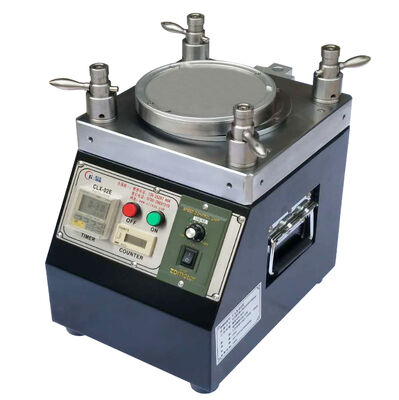

CLX-02E Optic Polish Machine
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 0
Product Overview
The CLX-02E Fiber Optical Polishing Machine is engineered based on international universal standards and extensive hands-on experience. This high-precision equipment exceeds GR-326 end face geometry requirements and features advanced four-corner compression with innovative I.P.C. holder technology, delivering industry-leading results. The machine maintains consistent performance whether polishing 1 or 24 connectors, with stable jig installation and compact design. Ideal for mass production, it processes excellent connector end-faces for LC, SC, ST, FC, MTRJ, E2000 connectors and supports angle polishing applications.
Key Features
  • High-precision fiber optic polishing equipment
  • Quick-change polishing jigs for efficient operation
  • Planetary orbit polishing trails with adjustable rotation speed (typically 140RPM)
  • Maximum capacity: 48 pieces for MU/LC connectors, 36 pieces for SC/FC/ST connectors
  • High efficiency with 98%–100% first-pass yield for end face quality
  • IPC structure fiber polishing fixture with independent connector compression
  • Fiber optic connector polishing 3D pass rate ≥98% (typically 100% per IEC standards)
  • Performance metrics: APC return loss ≥60dB, PC/UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • High-quality heat-treated stainless steel construction for precision and durability
  • Excellent stability with 8-10 year operational lifetime
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 1CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 2CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 3
Technical Specifications
ParameterSpecification
Machine TypeCLX-02E
Machine SizeL 240mm × W 240mm × H 260mm
Net Weight28kg
Power Input110~230VAC 50Hz/60Hz
Electric Power126W
Relative Humidity15%~85%
Work Temperature8℃~45℃
O.D. of Rotation Plate127 mm (5 inch)
Time Settings99 min 99 sec (Max)
Speed for Rotation Plate140 rpm
Height of Plate Jumpiness< 10 μm
Noise Level< 50 dB
Polishing Performance Results
Fiber End Face Inspection
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 4
High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges
Insertion Loss & Return Loss Test Results
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 5
Connector TypeSM/UPCSM/APCMM/UPC
Insertion Loss≤0.20dB≤0.20dB≤0.30dB
Return Loss≥55dB≥60dB≥30dB
Geometry Test Results
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 6
ParameterUPC CriterionAPC Criterion
Radius of Curvature5-25mm5-12mm
Apex Offset0-50μm0-50μm
Fiber Height-100~+50μm-100~+50μm
Anglen/a8.00+/-0.50°
Get a Free Quotation → GO
Company Profile
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 7
Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. is an optical communications equipment company integrating research and development, production, after-sales service, and technical services. We not only sell high-quality products and provide excellent after-sales service, but also offer free technical support to our customers. We provide effective solutions for technical problems encountered in optical fiber connector production.
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 8CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 9CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 10CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 11CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 12CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 13
Get a Free Quotation → GO
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 14CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 15CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 16CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 17CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 18
Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx, typically 4 to 6 days delivery. Time may vary based on order quantity.
How do we pay?
Advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty period providing free repairs (excluding consumables). After warranty, accessories continue to be available at cost.
Do you provide customized services?
Yes, we provide customized services according to customer requirements and specifications.
CLX-02E High-Precision Fiber Optic Polishing Machine with 48 pcs MU/LC Capacity, 98% First Pass Yield, and Adjustable Speed 140rpm 19
