High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station

1
MOQ
$798.23-869.15
Precio
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Rango de medición: +3 ~ -75dBm
Resolución: ±0.3dB
Temperatura de funcionamiento: +10 ℃ ~ +50 ℃
Longitud de onda de la fuente de luz: MM: 850 nm/1300 nm SM: 1310/1550/650.850 1310/14
Peso: 3 kg
Longitud de onda: 1310/1550 nm
Conector óptico: FC/APC
Gama de la pérdida de vuelta: 14,8 ~ 75dB
Estabilidad del láser: 0,05 dB (1 hora a 25 °C)
Precisión de la medición: 0.25 dB
Rango de longitud de onda: 800~1700nm
Longitud de onda calibrada: 850/1300/1310/1550nm
detector de fotos: Ingaas
Modos de visualización: dBm/dB/xW
Dimensiones: Las medidas de seguridad se aplicarán a las medidas de seguridad establecidas en el anexo II.
Resaltar:

14.8 ~ 75dB Return Loss Measurement Range Fiber Optic Test Station

,

0.25dB Measurement Accuracy Insertion Return Loss Tester

,

±0.3dB Resolution IL & RL Tester
Información básica
Lugar de origen: Cantón, China
Nombre de la marca: chuanglixun
Número de modelo: CLX-CH03, CLX-CH03
Pago y Envío Términos
Descripción de producto

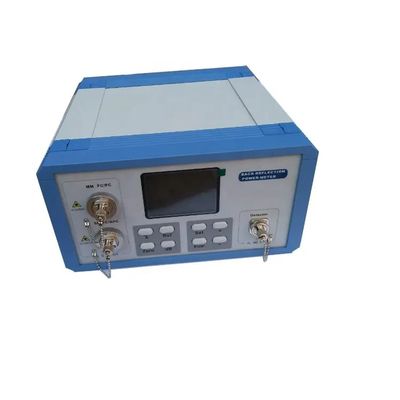

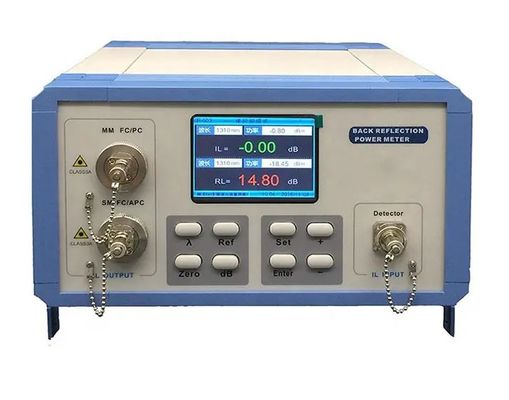

CLX-CH03 Fiber Optic Patchcords IL&RL Test Station Insertion Loss Return Loss Tester
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 0 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 1
Insertion Return Loss Tester
The CLX-CH03 is designed for precise measurement of insertion loss and return loss in fiber optic connections. Its applications include:
  • Testing pigtails and patch cords
  • Optical connections in communication equipment rooms and distribution frames
  • Optical connections in various apparatus and equipment
Key Features
  • High measurement accuracy
  • Synchronously auto-setting wavelength
  • Multiple working modes
  • User-friendly operation
  • Ergonomic design
  • Universal optical connector with easy cleaning
  • USB connectivity
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 2 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 3 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 4
Technical Specifications
Parameter Value
Product Name Insertion and Return Loss test Station
Wavelength 1310/1550nm
Optic Connector FC/APC
Return Loss measurement Range 14.8 ~ 75dB
Output Stability of laser source 0.05dB(1 hour@25°C)
Measurement accuracy 0.25dB
Resolution ±0.3dB
Wavelength Range 800~1700nm
Calibrated wavelength 850/1300/1310/1550nm (others optional)
Optic Connector (Power Meter) Interchangeable FC/SC/ST/2.5mm Universal /1.25mm adaptors
Photo detector InGaAs
Display modes dBm/dB/xW
Communication Port USB
Dimensions 360×240×130mm
Weight 2.8kg
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 5 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 6
Shipping Information
We ship worldwide using major carriers including DHL, FEDEX, UPS, EMS, TNT or by sea. You may provide your courier account for optimized shipping costs.
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 7
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
Standard shipping takes 4-6 days via DHL or FedEx. Delivery time may vary based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1 year warranty (free repairs except for consumables). After warranty period, cost-based support continues.
Do you provide customized services?
Yes, we offer customization based on customer requirements.
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 8 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 9
