High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production

1
MOQ
$729.65-765.25
Precio
High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Tamaño de la máquina: Largo 240 mm x ancho 240 mm x alto 260 mm
Entrada de energía: 110 ~ 230 VAC 50Hz/60Hz
Energía eléctrica: 126w
Peso neto: 28 kg
Temperatura laboral: 10° ~ 40°
Humedad relativa: el 15%~85%
Pérdida de inserción: ≤0,20 dB (típico)
Pérdida de retorno: PC(UPC) ≥55dB, APC ≥60dB
Placa de rotación OD: 127 milímetros (5 pulgadas)
Configuración de tiempo: 99 min 99 sec (máximo)
Velocidad de rotación: 140 rpm/min
Saltos del plato: < 10="" um="">
Nivel de ruido: Libración de 50 dB
Vibración del estado de trabajo: 0,25g 5~100Hz 10min
Detener la vibración del estado: 0,50 g 5~100 Hz 10 min
Resaltar:

48 Pcs MU/LC Capacity Fiber Optic Polishing Machine

,

36 Pcs SC/FC/ST Capacity Fiber Optic Polishing Machine

,

High-precision Fiber Optic Polishing Machine
Información básica
Lugar de origen: Cantón, China
Nombre de la marca: CLX
Número de modelo: CLX-02E, CLX-02E
Pago y Envío Términos
Descripción de producto
Factory Fiber Optical Patch Cord Grinding Machine Fiber Optic Ferrule Polisher Machine

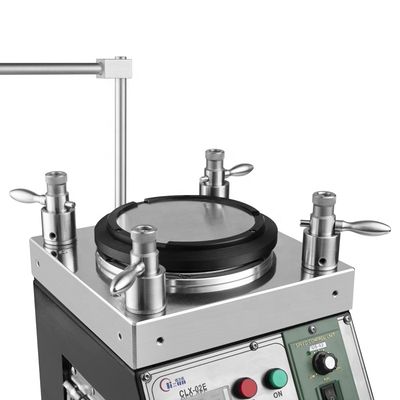

High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 0

This fiber optical polishing machine is based on international universal standards and long-term hands-on experience. It exceeds requirements for GR-326 end face geometry and adapts to four corners compression with new I.P.C. holder technology that yields the best results in the industry. The machine maintains consistent results whether polishing 1 or 24 connectors, with stable jig installation and compact size. Designed for mass production, it can process excellent connector end-faces of LC, SC, ST, FC, MTRJ, E2000 and other types, including angle polishing.

Key Features
  • High-precision fiber optic polishing equipment
  • Quick-change polishing jigs
  • Planetary orbit polishing trails with adjustable rotation speed (typically 140RPM)
  • Maximum polishing capacity: 48 pcs for MU/LC connectors, 36 pcs for SC/FC/ST
  • High efficiency with first pass yield for end face quality reaching 98%-100%
  • IPC structure polishing fixture with independent compression for each connector
  • 3D pass rate ≥98% (typically 100% according to IEC standards)
  • Return loss: APC ≥60dB, PC(UPC) ≥55dB
  • Insertion loss ≤0.20dB (typical)
  • High-quality stainless steel construction with heat treatment for precision and durability
  • Excellent stability with 8-10 year lifespan

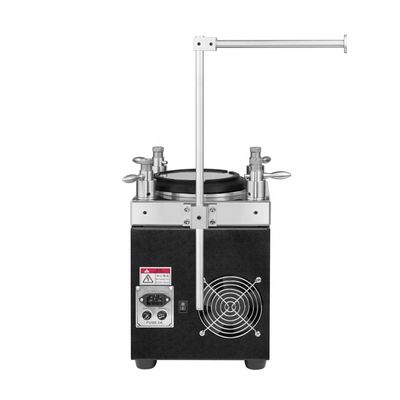

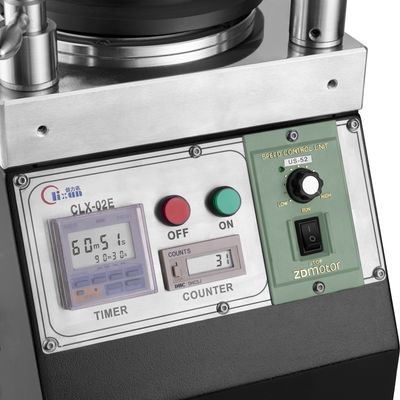

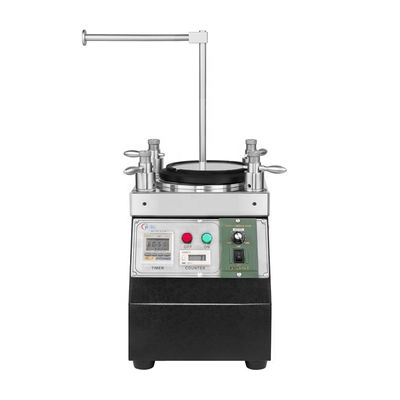

High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 1 High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 2 High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 3
Technical Specifications
Parameter Value
Machine Type CLX-02E
Machine Size 290mm(L) × 220mm(W) × 340mm(H)
Net Weight 28 kg
Power Input 110-120VAC / 220-230VAC 50Hz/60Hz
Electric Power 126 W
Relative Humidity 15%-85%
Work Temperature 8℃-45℃
O.D. of Rotation Plate 127 mm (5 inch)
Time Settings 99 min 99 sec (Max)
Speed for Rotation Plate 140 rpm/min
Height of Plate Jumpiness < 10 μm
Noise Level < 50 dB
Polishing Performance
Fiber End Face Inspection Results

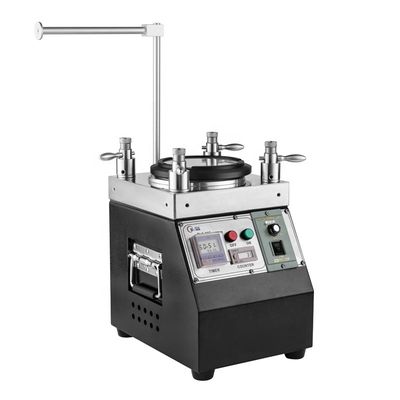

High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 4

High-quality end-face polishing with no white spots or scratches, clearly visible fiber edges.

IL/RL Test Results
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.30dB
Return Loss ≥55dB ≥60dB ≥30dB
Geometry Test Results
High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 5
Parameter UPC Criterion APC Criterion
Radius of Curvature 5-25mm 5-12mm
Apex Offset 0-50μm 0-50μm
Fiber Height -100~+50μm -100~+50μm
Angle n/a 8.00±0.50°
Get a free Quotation via Us >>> GO
About Our Company

Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010 as an optical communications equipment company integrating research and development, production, after-sales service and technical services. We provide not only high-quality products and excellent after-sales service, but also free technical support to our customers with solutions for technical problems encountered in fiber optic patch cord production.

High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 6 High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 7 High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 8 High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 9 High-precision Fiber Optic Polishing Machine with 48 Pcs MU/LC Capacity and 36 Pcs SC/FC/ST Capacity for Mass Production 10
Shipping Information

We typically use DHL, FedEx, UPS, EMS, TNT or sea freight. You may provide your courier account and we will help select the most cost-effective shipping method based on quantity.

Frequently Asked Questions
Are you a factory or a trader?
We are a factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
Shipping takes 4-6 days via DHL or FedEx, with possible extension based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we continue to provide accessories at cost.
Do you provide customized services?
Yes, we provide customization based on customer requirements.
