36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB

1
MOQ
$336.25-365.16
Precio
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Material: Acero inoxidable endurecido2316
Tipo de conector: conector del sc apc
Tamaño: 174*174*26m m
Diámetro de la férula: 2.50m m
Peso neto: 1,5 kilogramos
Peso bruto: 2,0 KILOGRAMOS
No. de fibra: 36 posiciones
Pérdida de inserción: ≤0.20db
Pérdida de retorno: ≥ 60 dB (APC)
Fin-cara: APC
Capacidad: 36 posiciones
Radio de curvatura: 5-12 mm
Desplazamiento del ápice: 0-50 μm
Altura de fibra: -100~+50μm
Ángulo: 8,00+/-0,50°
Resaltar:

36 Positions Fiber Optic Polishing Jig

,

Hardened Stainless Steel S2316 Polishing Fixture

,

APC Return Loss ≥60dB Fiber Polishing Fixture
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Chuanglixun
Certificación: ce
Número de modelo: SC-APC-36
Pago y Envío Términos
Descripción de producto

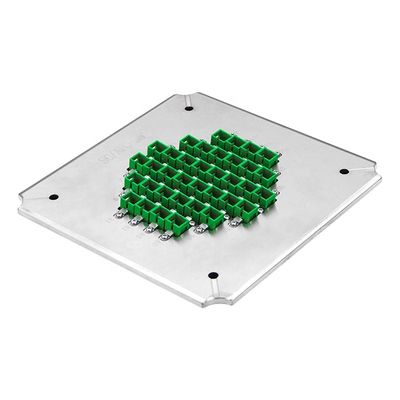

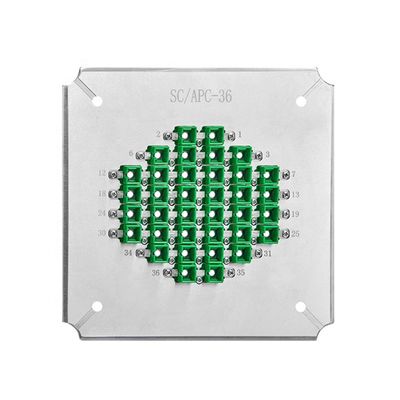

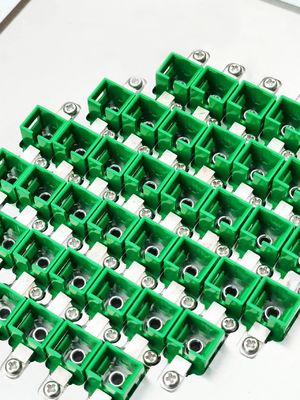

High Quality SC APC Fiber Optic Connector Polishing Jig 36 With Green
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 0
Product Description
This fiber polishing fixture/jig offers high stability and excellent surface quality. Manufactured from high-quality heat-treated steel (hardened steel S2316) for extended service life. The jig can be designed for SC, FC, ST, LC connectors and customized according to customer requirements.
Key Features
  • Designed specifically for SC/APC connectors
  • Easy jig changing with simple, flexible operation
  • High efficiency - polishes up to 36 connectors per cycle with 98%-100% first pass yield
  • IPC structure with independent compression for each connector
  • APC return loss ≥60dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories for extended service life
Specifications
Model SC-UPC-24 SC-APC-26 SC-APC-36
Brand CLX CLX CLX
Connector Type SC UPC SC APC SC APC
End-face UPC APC APC
Ferrule Diameter 2.5mm 2.5mm 2.5mm
Capacity 24 positions 26 positions 36 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥50dB (UPC) ≥60dB (APC) ≥60dB (APC)
Application Polishing assembled SC UPC connectors Polishing assembled SC APC connectors Polishing assembled SC APC connectors
Material Stainless Steel S136
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight (kg) 1.5 kgs / 2.0 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 1 36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 2
Polishing Effect
1. Polished Connector Ferrule Faces
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 3
High-quality end-face polishing with no white spots or scratches. The fiber edge is clearly visible.
2. ILRL Test Result
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 4
Connector Type SM/UPC SM/APC MM/UPC
Insertion Loss ≤0.20dB ≤0.20dB ≤0.50dB
Return loss ≥55dB ≥60dB ≥30dB
3. Geometry Test Result
36 Positions SC APC Connector Fiber Optic Polishing Jig with Hardened Stainless Steel S2316 and APC Return Loss ≥60dB 5
NO. Parameters UPC Criterion APC Criterion
1. Radius of Curvature 5-25mm 5-12mm
2. Apex Offset 0-50μm 0-50μm
3. Fiber Height -100~+50μm -100~+50μm
4. Angle n/a 8.00+/-0.50°
About Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.
Established in 2010, we are an optical communications equipment company specializing in R&D, production, after-sales service and technical support. We provide high-quality products along with comprehensive technical solutions for fiber optic connector production challenges.
Frequently Asked Questions
1. Are you a factory or a trader?
We are a factory.
2. What is your MOQ?
MOQ is 1 piece.
3. Do you provide sample services?
Yes, we provide samples.
4. How will you ship to me?
We ship via DHL or FedEx (4-6 days). Shipping method may vary based on order quantity.
5. How do we pay?
We accept multiple payment methods including T/T and T/L.
6. How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-price accessories.
7. Do you provide customized services?
Yes, we provide customization according to customer requirements.
