Inicio /Productos/Accesorio de pulido/High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%

High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%

1
MOQ
$149.12-168.25
Precio
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98%
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Peso neto: 0,5 kg
Material: endurezca el acero inoxidable
Tamaño: 110*5m m
No. de fibra: 12
tasa de aprobación 3D: ≥98%
Pérdida de inserción: ≤0.20db
Pérdida de retorno PC: ≥55dB
Pérdida de retorno APC: ≥60db
Tipo de conector: SC,FC,LC,ST,MU,E2000(PC/APC)
Tipo de máquina pulidora: Máquina pulidora de presión central
Número de corazones de la fibra: 12
Estructura de la CIP: Compresión independiente de cada conector.
Tipo de acero: acero endurecido S2316
Rendimiento del primer paso: 100%
Tasa de interferencia: ≥98%
Resaltar:

12 Port Polishing Fixture

,

110*5mm Fiber Optic Polishing Jig

,

3D Pass Rate ≥98% Polishing Plate
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: chuanglixun
Número de modelo: ST/PC
Pago y Envío Términos
Descripción de producto
Factory Direct Sales High Efficiency ST UPC 12 Port Optical Fiber Cable Connector Polishing Plate Fixture

This high-efficiency fiber polishing fixture features an IPC structure with independent compression for each connector. With a pass rate of ≥98% (typically 100% according to IEC standards), it delivers exceptional stability and surface quality for optical fiber connectors.

Key Features
  • Designed for ST/PC and ST/UPC connector polishing
  • High efficiency - polishes 12 ferrules in one cycle
  • Replaceable holders for cost-effective polishing
  • Complies with IEC standards for geometry dimensions
  • 100% first pass yield for end face quality
Technical Specifications
Model ST/PC, ST/UPC
Net Weight 0.5kg
Connector Type SC, FC, LC, ST, MU, E2000 (PC/APC)
Polishing Machine Type Center Pressure Polish Machine
Number of Fiber Cores 12
Material Hardened stainless steel
Insertion Loss ≤0.20dB
Return Loss ≥55dB (PC), ≥60dB (APC)
Warranty 24 months

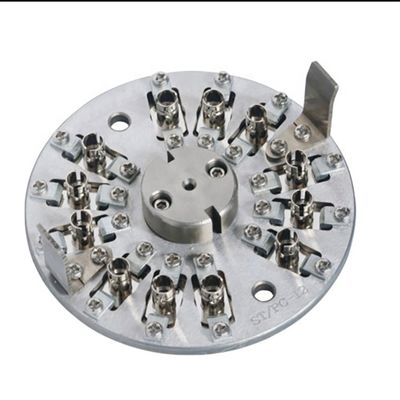

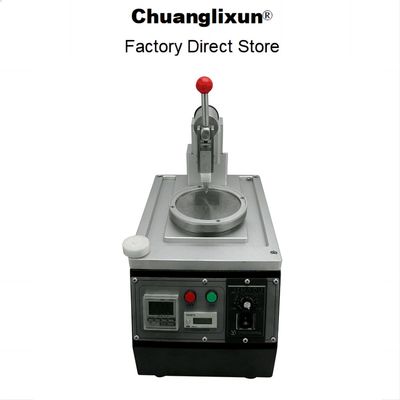

Product Gallery
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 0 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 1 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 2

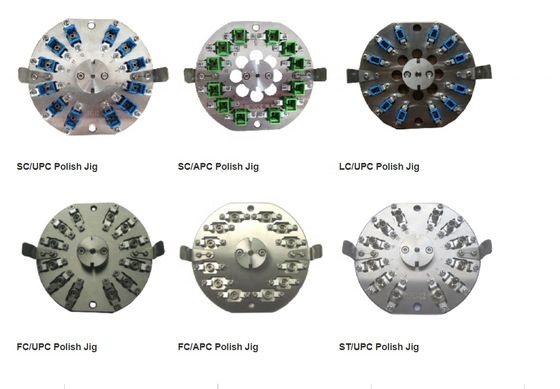

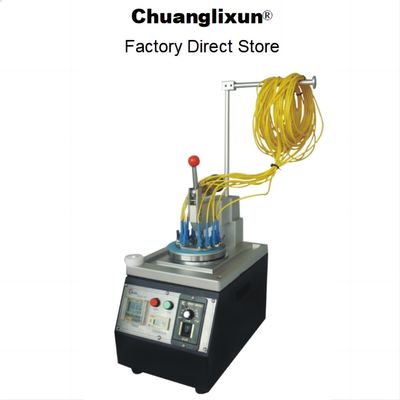

Available Models
High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 3 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 4 High Efficiency 12 Port ST UPC Fiber Optic Polishing Jig with 110*5mm Size and 3D Pass Rate ≥98% 5
Frequently Asked Questions
Are you a factory or a trader?
We are the factory.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
We ship via DHL or FedEx in 4-6 days (may vary based on order quantity).
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1-year warranty (free repairs except for consumables). After warranty, we provide cost-based replacement parts.
Do you provide customized services?
Yes, we offer customization according to customer requirements.
