LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100%

1
MOQ
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100%
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Tipo: Máquina de la producción de la fibra óptica
Modelo: LC/APC
Peso neto: 1.2 kg
Material: Acero inoxidable de alta resistencia S136
Dimensiones: 174mm*174mm*26m m
No. de fibra: 24/36/48
Pérdida de inserción: ≤0.20db
Pérdida de retorno: ≥55dB (PC) ≥60dB (APC)
Diámetro de la férula: 1.25 mm
Capacidad: 24/36/48 posiciones
Fin-cara: APC
Radio de curvatura: 5-25 mm (UPC), 5-12 mm (APC)
Desplazamiento del ápice: 0-50 μm
Altura de fibra: -100~+50μm
Ángulo: 8,00+/-0,50° (APC)
Resaltar:

Insertion Loss ≤0.20dB Polishing Fixture

,

Return Loss ≥60dB Fiber Polishing Jig

,

First Pass Yield 98%–100% Optical Fiber Polishing Holder
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Chuanglixun
Número de modelo: LC/APC
Pago y Envío Términos
Descripción de producto

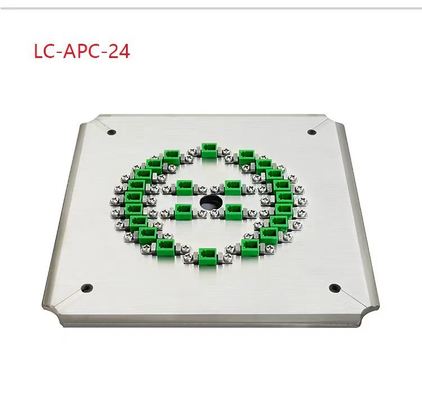

LC APC Optical Fiber 24/36/48 Ports Polishing Fixture
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 0 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 1
This fiber polishing fixture/jig offers high stability and excellent surface quality. Constructed from high-quality heat-treated steel (hardened steel S2316) for long service life. Available in configurations for SC, FC, ST, and LC connectors, with custom designs available upon request.
Key Features:
  • Designed specifically for LC/APC connectors
  • Easy jig replacement with simple, flexible operation
  • High efficiency: polishes 24, 36, or 48 connectors per cycle with 98%-100% first-pass yield
  • IPC structure with independent compression for each connector
  • Performance metrics: APC return loss ≥60dB, UPC return loss ≥55dB, insertion loss ≤0.20dB (typical)
  • Replaceable accessories extend service life
  • Constructed from heat-treated hardened steel S136 for durability
LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 2 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 3 LC APC Optical Fiber Polishing Fixture with Insertion Loss ≤0.20dB Return Loss ≥60dB and First Pass Yield 98%–100% 4
Technical Specifications:
Model LC-APC-24 SC-APC-36 SC-APC-48
Brand CLX CLX CLX
Connector Type LC APC LC APC LC APC
End-face APC APC APC
Ferrule Diameter 1.25mm 1.25mm 1.25mm
Capacity 24 positions 36 positions 48 positions
Insertion Loss ≤0.20dB ≤0.20dB ≤0.20dB
Return Loss ≥60dB (APC) ≥60dB (APC) ≥60dB (APC)
Application Polishing assembled LC APC connectors
Material Stainless Steel
Dimension (L*W*H) 174*174*26 mm
Net Weight / Gross Weight (kg) 1.3 kgs / 1.5 kgs
Suitable machines CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine, and similar machines
